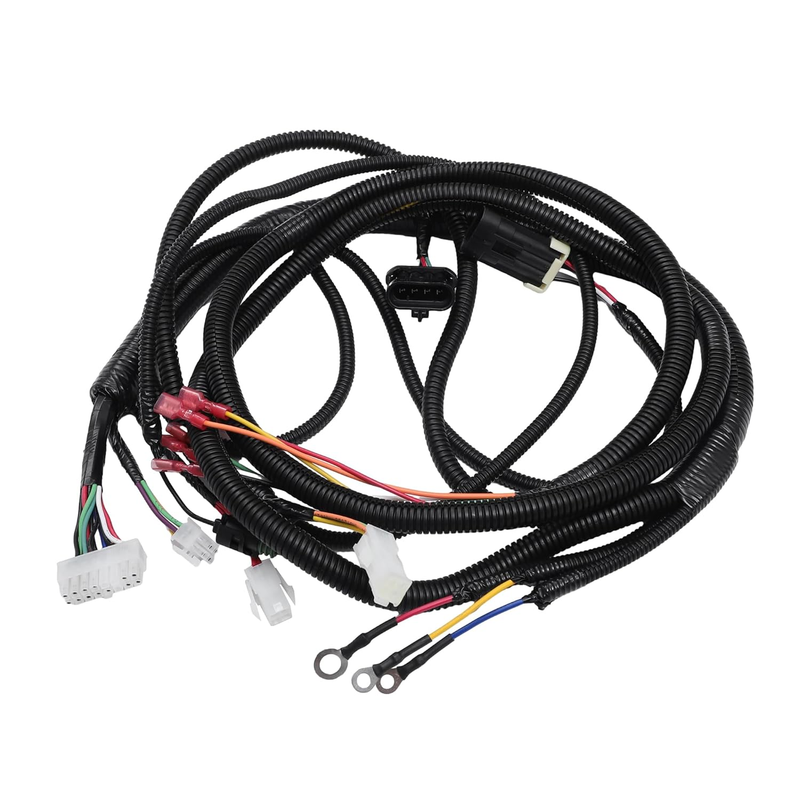

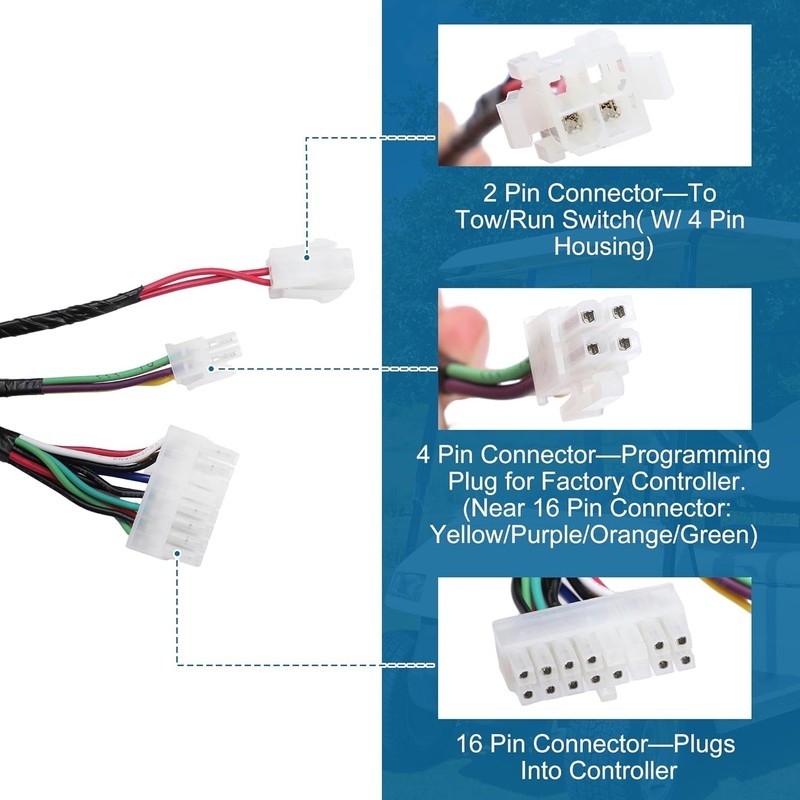

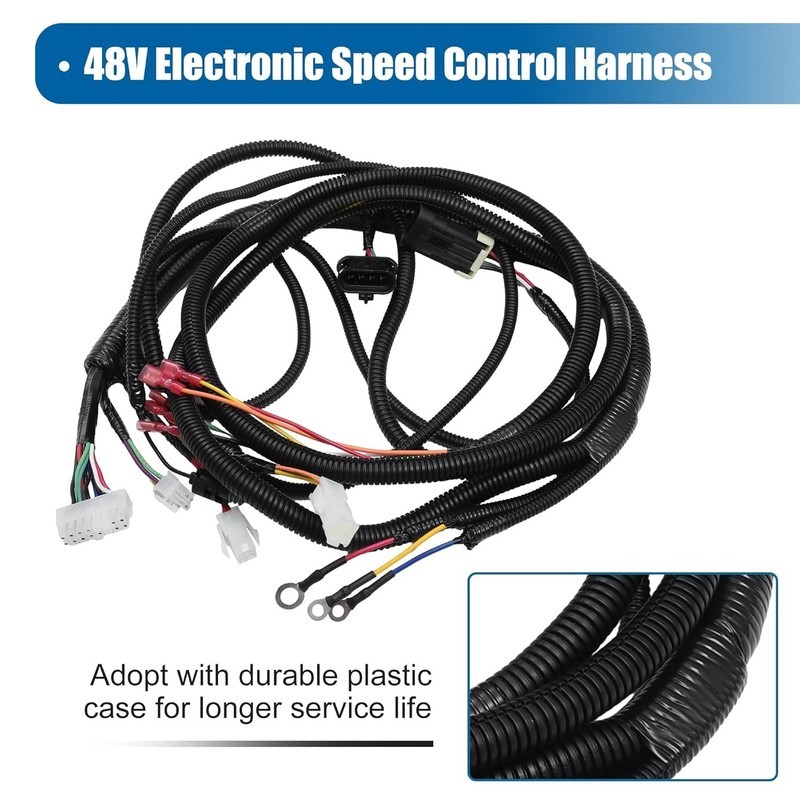

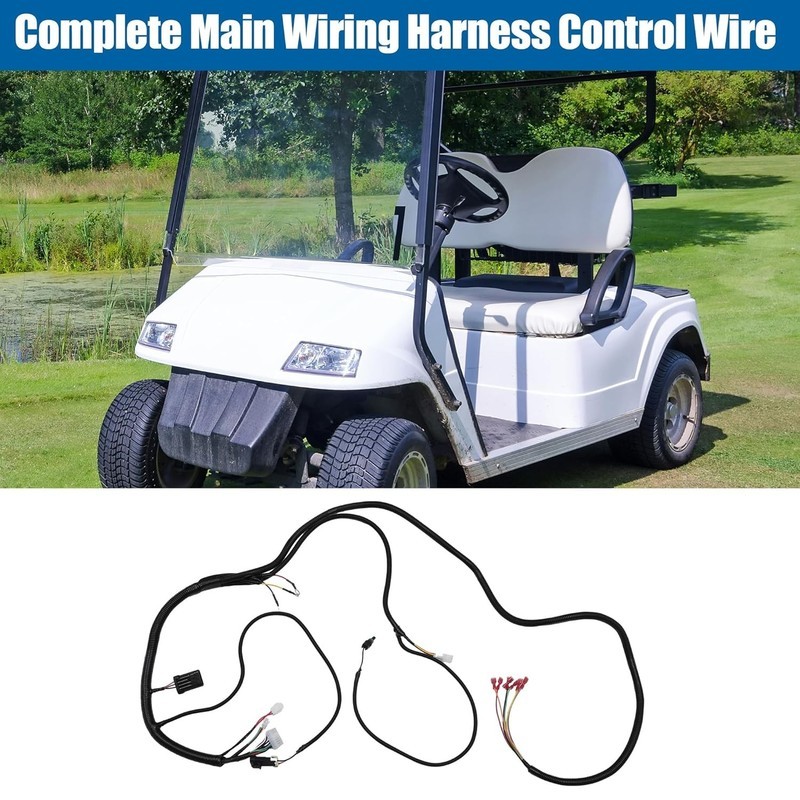

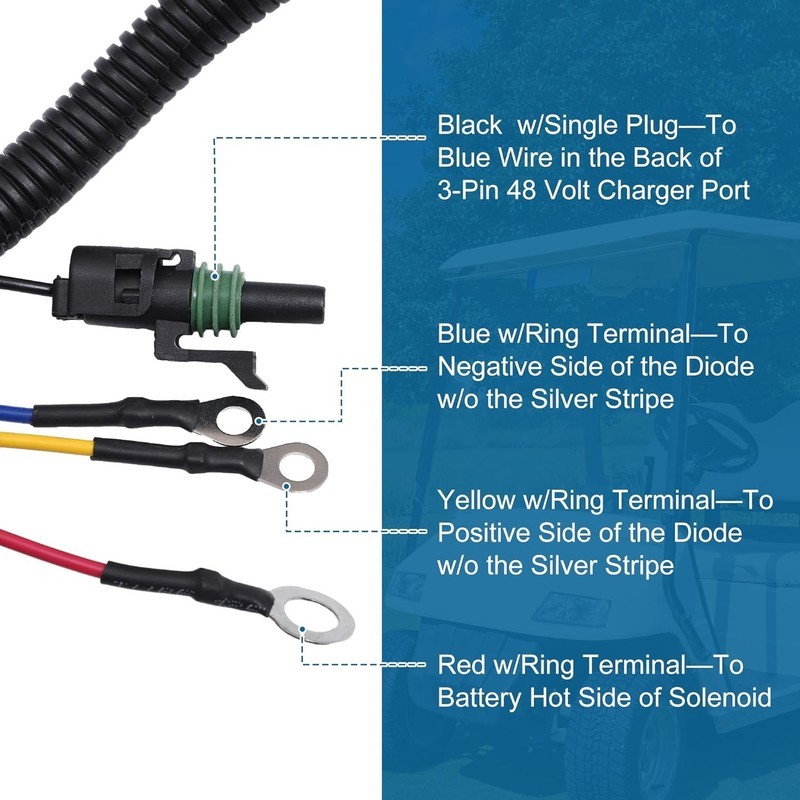

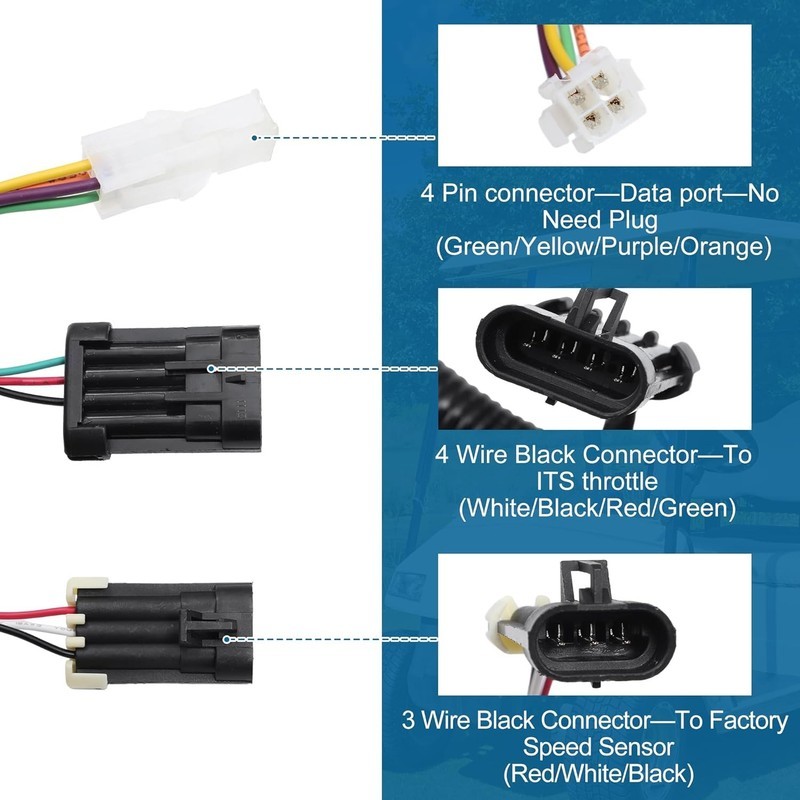

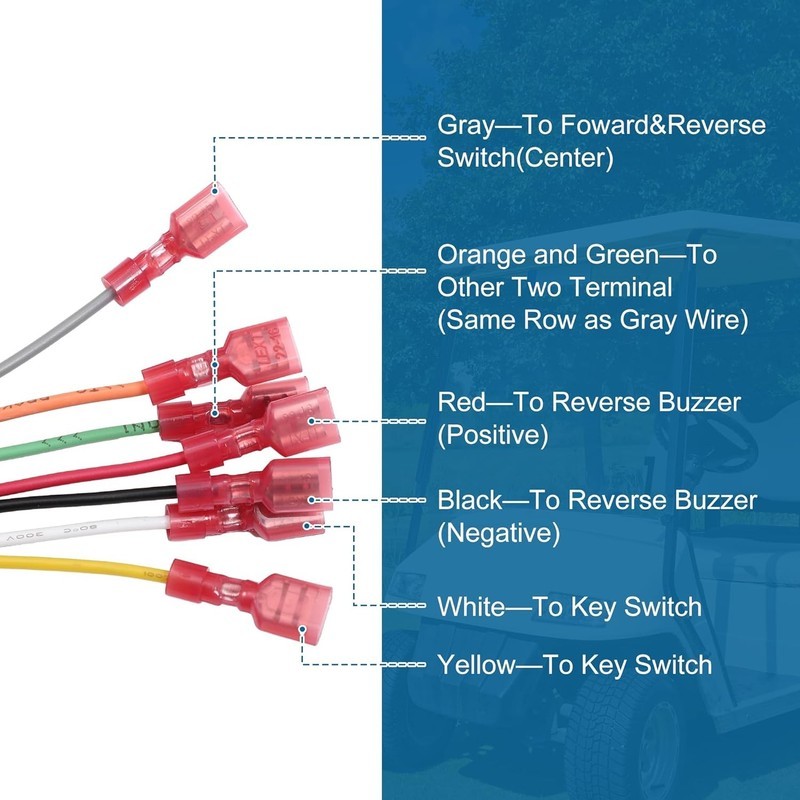

Store New Arrivals Add to Favorite View Feedback Contact EZGO TXT48 Main Wiring Harness 2010-2022 48V Golf Cart Controller Wire Kit Description Cable Type Flat Ribbon Connector Type DIN Department Mens Package Dimensions 7.24 x 7.2 x 2.44 inches; 1.17 Pounds [Fitmen of Main Wiring Harness Control Wire] Usde for Golf Cart, include for EZGO TXT48 TXT Fleet 48V 2010-2022 , for EZGO TXT48 Freedom TXT 48V 2010-2022 , for EZGO TXT48 TXT 2+2 48V 2010-2022. Please check car make, model, year and pin number before purchase. [Function for Golf Cart Main Harness] Help to maintan the electrical connections for golf cart, connect the components and let them to work efficientively. [Complete Wire Plug Harness] This harness have equipped complete plug and connectors, to connect like Foward Reverse Switch, Reverse Buzzer, Key Switch, Tow/Run Switch, Main Controller, Factory Controller, ITS throttle, Factory Speed Sensor etc. Each Plug have played it's role correctly. Please check pictures to check each plugs connection. [Features Noice of Electronic Speed Control Harness] Adopt with durable plastic case and reliable plastic connector for longer service life. The Main Harness allows you to connect other 48V controllers which special for TXT48 system. Also able to upgrade for Navitas AC controller/motor combination package (All Not Include) [Package] Included 1 48V Complete Main Wiring Harness Control Wire. Please double check our pictures or search online to get correct connection diagram. For different version, There have Forward Reverse switch wiring stay on the rear body or dash, you can keep same length or extend the length as you need when installation. Product description For Golf Cart Complete Main Wiring Harness Control Wire Fitment for Golf Cart: for EZGO TXT48 TXT Fleet 48V 2010-2022 for EZGO TXT48 Freedom TXT 48V 2010-2022 for EZGO TXT48 TXT 2+2 48V 2010-2022 Specifications: Color: Black, Material: Plastic, Length: 222cm / 87.40" Included 1 48V Complete Main Wiring Harness Control Wire Notice Double check our pictures or search online to get correct connection diagram. The Main Harness allows you to connect other 48V controllers which special for TXT48 system. Also able to upgrade for Navitas AC controller/motor combination package (All Not Include) For different version, There have Forward Reverse switch wiring stay on the rear body or dash, you can keep same length or extend the length as you need when installation. 7 Wire Connection with blade terminals Gray?To Foward Reverse Switch(Center) Orange and Green?To Other Two Terminal(Same Row as Gray Wire) Red?To Reverse Buzzer(Positive) Black?To Reverse Buzzer(Negative) White?To Key Switch Yellow?To Key Switch Wire Connection Black w/Single Plug?To Blue Wire in the Back of 3-Pin 48 Volt Charger Port Blue w/Ring Terminal?To Negative Side of the Diode w/o the Silver Stripe Yellow w/Ring Terminal?To Positive Side of the Diode w/o the Silver Stripe Red w/Ring Terminal?To Battery Hot Side of Solenoid Plug Connection 16 Pin Connector?Plugs Into Controller 4 Pin Connector?Programming Plug for Factory Controller (Near 16 Pin Connector: Yellow/Purple/Orange/Green) 2 Pin Connector?To Tow/Run Switch( W/ 4 Pin Housing) Plug Connection 4 Pin connector?Data port?No Need Plug (Green/Yellow/Purple/Orange) 4 Wire Black Connector?To ITS throttle (White/Black/Red/Green) 3 Wire Black Connector?To Factory Speed Sensor (Red/White/Black) ABOUT US We offer the best prices around on high quality products. Our E-store includes media such as books, movies, music and games while offering electronics, toys, sporting apparel, clothing, tools, general home, garden items and more. SHIPPING We are always working hard to ensure your package arrives as soon as possible. Please understand that some factors like weather, high postal traffic, and the performance of shipping companies are outside of our control. RETURNS We offer a 30-Day Return Policy on items which you are not completely satisfied with. You have the option for a full-refund or an exchange of the item. PAYMENT We accept PayPal. CONTACT US This page content is yet to come Please ad us to your favorite seller and visit again later Thank You CUSTOMER SATISFACTION We try our very best to make sure every customer is completely satisfied. If there's a problem, message us! We're happy to help.
