5 pack 782xbxm4l-24d p827007eb full featured and 43 similar items

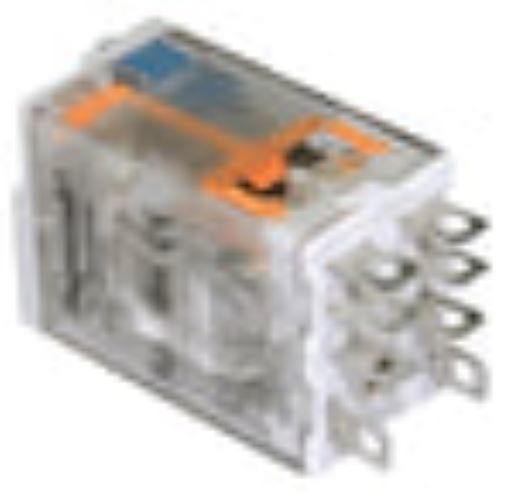

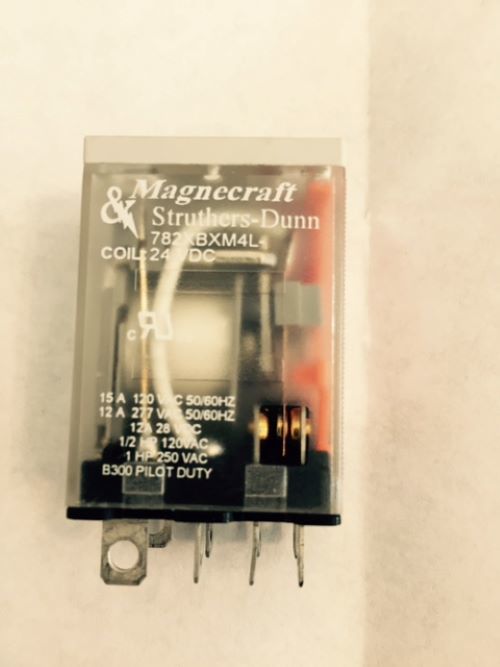

782xbxm4l-24d p827007eb full featured cover dpdt 15a/12a icecube coil 24vdc contact material gold, silver mount plug-in, socket number of pins 8 weight 36 g coil current 36.9 ma coil power 1.2 w coil resistance 650 ? coil type non-latching coil voltage (dc) 24 v contact current rating 15 a current rating 15 a max current rating 15 a max operating temperature 55 c max voltage rating (ac) 120 v min operating temperature -40 c operate time 20 ms power consumption 900 mw power rating 900 mw relay type general purpose switching voltage 300 v termination plug throw configuration dpdt voltage rating (ac) 300 v dimensions depth 39.1 mm height 21 mm length 27.9 mm width 21 mm compliance approvals ce, csa, ul lead free lead free reach svhc unknown rohs compliant 400014507845 782116484829 782xbxm4l24d
