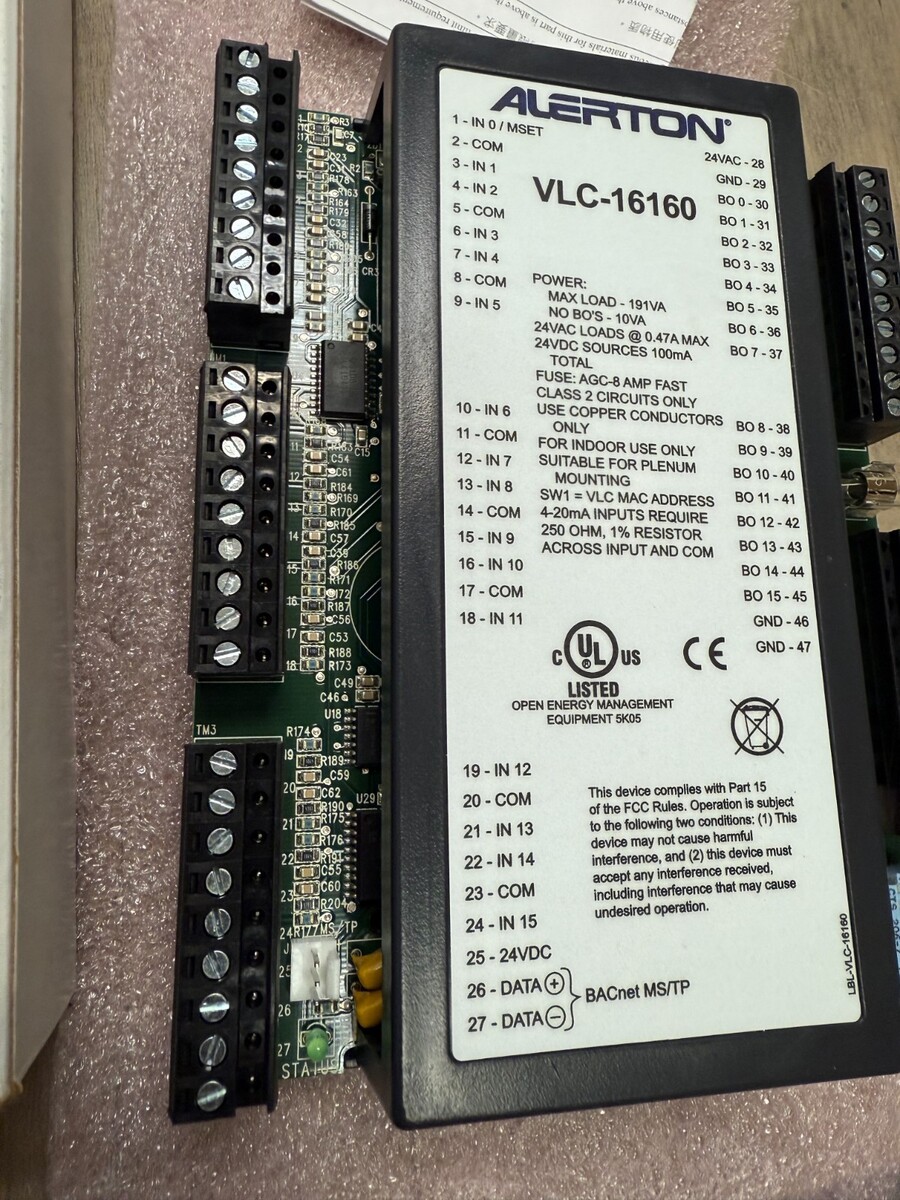

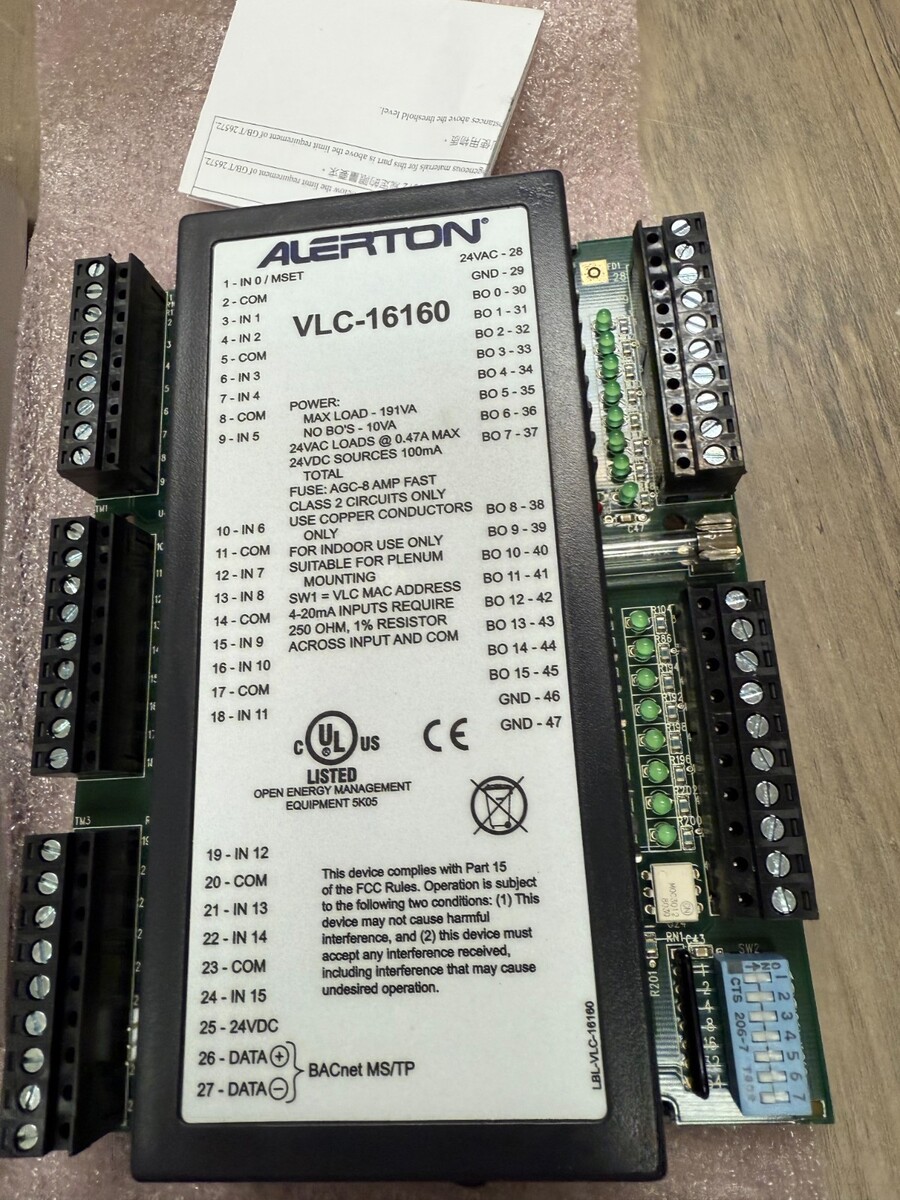

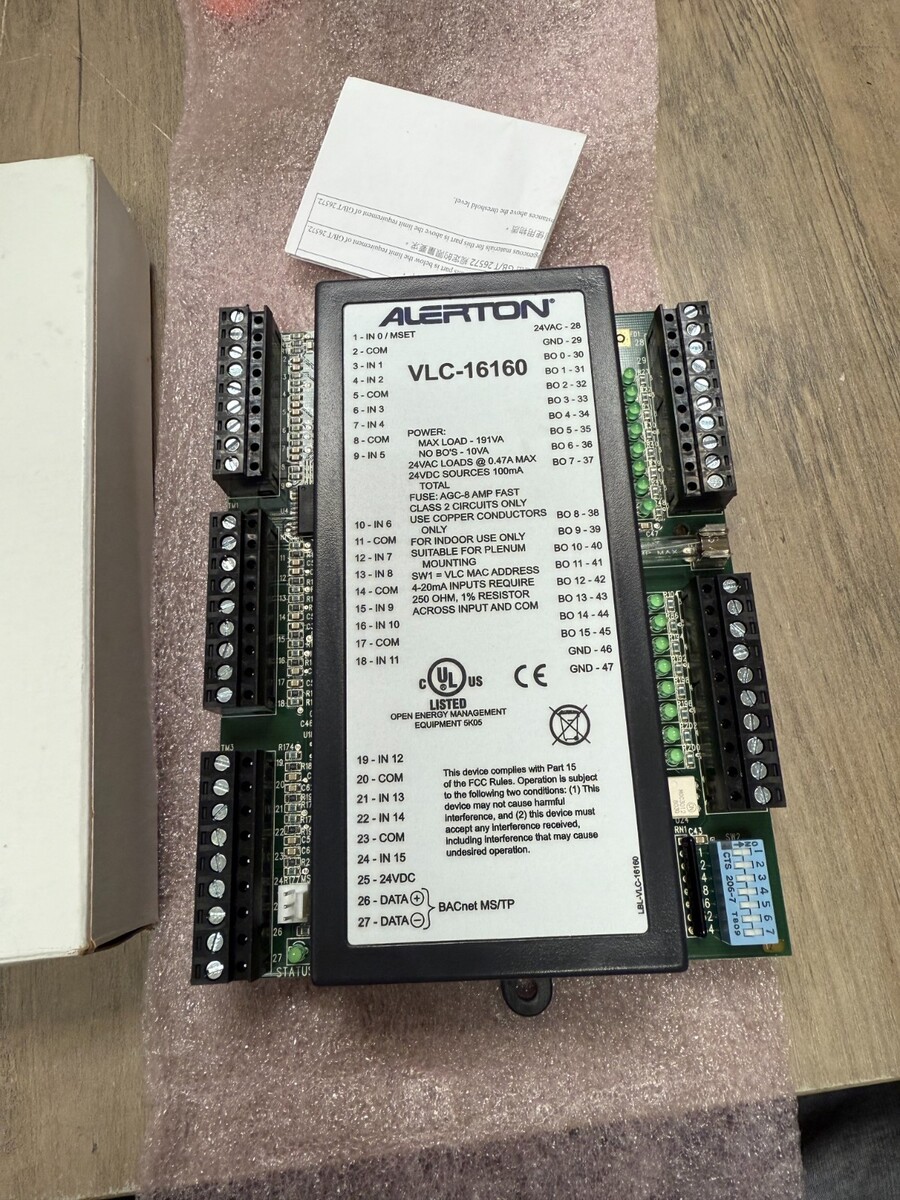

Alerton VLC-16160 Field Controller BRAND NEW Brand new The Alerton VLC-16160 is a BACtalk/BACnet MS/TP field controller used in building automation, typically for central plant systems, large air-handling units, and lighting panels.? Key functions Fully programmable logic controller for HVAC and building automation, capable of stand-alone operation or integration into a BACnet MS/TP network.? Designed to handle applications with many control points, including monitoring sensors and driving relays, contactors, or lighting circuits.? I/O and electrical specs 16 universal inputs with 10-bit resolution, software-selectable for thermistor, dry contact, 1?5 VDC, or 4?20 mA signals; input 0 can support an Alerton Microset wall sensor.? 16 binary outputs implemented as hot-switched triacs, rated for 24 VAC at about 0.47 A each, sharing a common fused 24 VAC supply.? Powered by 24 VAC (approx. 20 VA plus output load, up to about 220 VA total), with an auxiliary 24 VDC output (up to roughly 100 mA) for powering transducers or similar devices.? Communications and programming Native BACnet MS/TP device (ASC-level), typically up to 76.8 kbps on the original VLC-16160, with the VLC-16160-E line supporting MS/TP speeds up to 115.2 kbps.? Control logic created with Alerton?s VisualLogic graphical programming environment and stored in nonvolatile flash memory for reliable operation and firmware upgradability.? Hardware and environmental Uses a Motorola/AZ60-class processor with on-board flash, designed for a 100 ms internal logic loop and timer resolution.? Approximate dimensions 6.98 in (178 mm) high 4.85 in (124 mm) wide 1.50 in (39 mm) deep, with removable screw terminal headers for 14?24 AWG wiring.? Operating range roughly 0?158 F (?17?70 C), 0?95% RH non?condensing, and listed under UL 916 for open energy management equipment.? Variants and listing tips Common variants include VLC-16160 (base), VLC-16160-C (custom DDC), and VLC-16160-E (updated ?E? series with faster processor and higher MS/TP speeds).? For an listing, highlight: ?16 universal inputs / 16 triac outputs, BACnet MS/TP, 24 VAC, fully programmable VisualLogic controller? and note whether it is standard, -C, or -E, plus condition (tested, pulled from working system, etc.). We are wholesaler/liquidators. We bought this in a lot of new items to resell. We are counting upon you to know what you are buying and if this item will suit your needs. No returns. Please only purchase this if you agree to those terms. *** PLEASE NOTE! Our store buys and sells a variety of new and used electronics, instruments, tools, antiques and many other items. We do our absolute best to thoroughly test all our merchandise and accurately describe and depict any flaw or defect we find. SHELF:57 SA
