Hti Tech Synchronous Gear Motor 2-WIRE Ac and similar items
HTI TECH SYNCHRONOUS GEAR MOTOR 2-WIRE AC 120V 60Hz 2RPM 4.3W 50/60Hz +LEVER
$23.75
(It may be possible to pay only $21.14 instead of $23.75 when you
use your bCredits at checkout)
Sign up and get $5.00 bCredits free to use at checkout and another $5.00 bCredits when you make your first purchase. More info
Share & earn! Sign in, share this or any listing, and youโll get commission when it sells.
Learn more
View full item details »
Shipping options
$7.00 to United States
Offer policy
OBO - Seller accepts offers on this item.
Details
Return policy
Purchase protection
Payment options
PayPal accepted
PayPal Credit accepted
Venmo accepted
PayPal, MasterCard, Visa, Discover, and American Express accepted
Maestro accepted
Amazon Pay accepted
Nuvei accepted
View full item details »
Shipping options
$7.00 to United States
Offer policy
OBO - Seller accepts offers on this item.
Details
Return policy
Purchase protection
Payment options
PayPal accepted
PayPal Credit accepted
Venmo accepted
PayPal, MasterCard, Visa, Discover, and American Express accepted
Maestro accepted
Amazon Pay accepted
Nuvei accepted
Item traits
| Category: | |
|---|---|
| Quantity Available: |
Only one in stock, order soon |
| Condition: |
Used |
| Model: |
822-05 |
| MPN: |
HTSYG0488002MFL-0001 |
| Nominal Rated Input Voltage: |
120 V |
| Actual Rated Input Voltage: |
120V |
| Current Type: |
AC |
| AC Frequency Rating: |
50/60 Hz |
| AC Motor Type: |
Synchronous |
| AC Phase: |
Single Phase |
| Base RPM: |
2 RPM |
| Enclosure Type: |
TENV (Totally Enclosed Non-Ventilated) |
| Mounting Type: |
Base-Mounted |
| Rated/Full-Load Torque: |
14.5 kg-cm |
| Reversible/Non-Reversible: |
Reversible |
| Service Factor: |
1.15 |
| Shaft Type: |
Straight |
| Protection Against Liquids: |
Not Protected |
| Protection Against Solids: |
Not Protected |
| Rated Load: |
0.00576 HP |
| Special Motor Construction: |
Quiet Operation |
| Shaft Diameter: |
1/8" |
| Insulation Class: |
135ยฐ C |
| Brand: |
HTI Technoloby |
Listing details
| Posted for sale: |
December 31 |
|---|---|
| Item number: |
1786077961 |
Item description

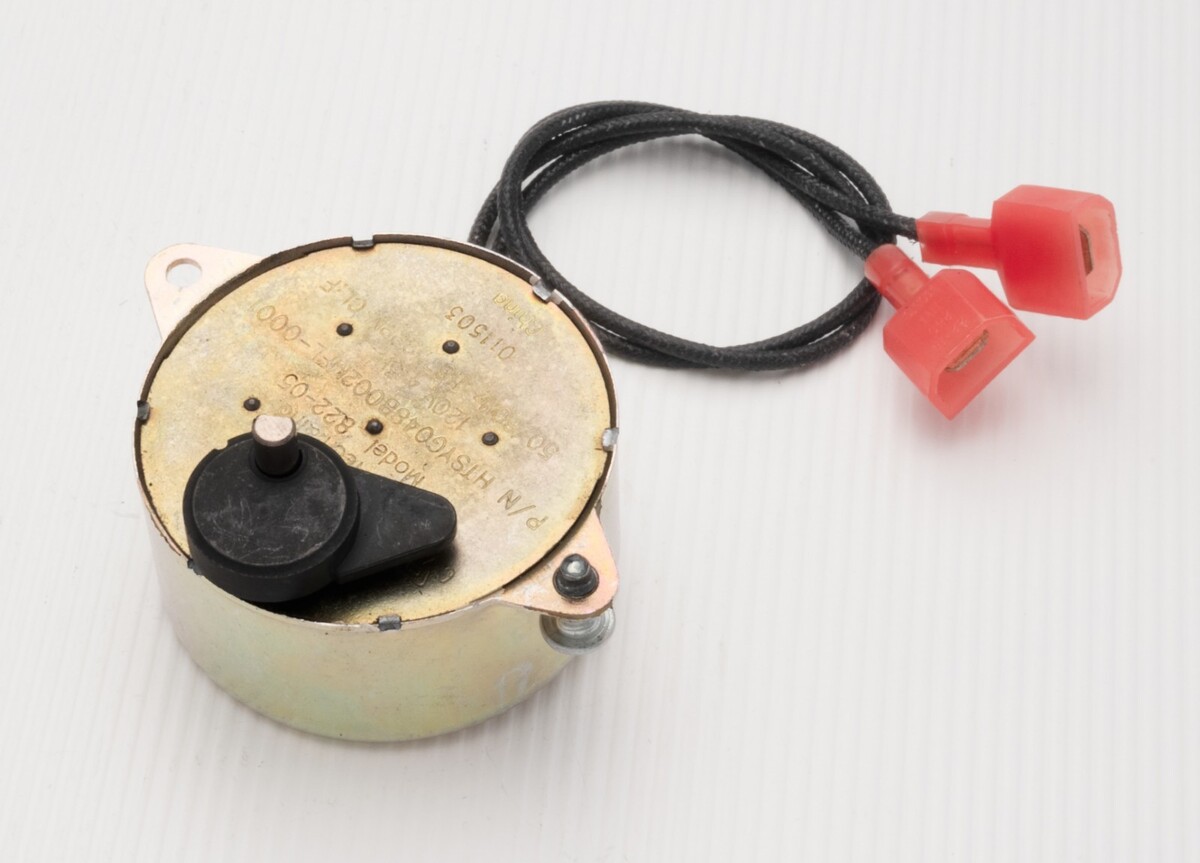

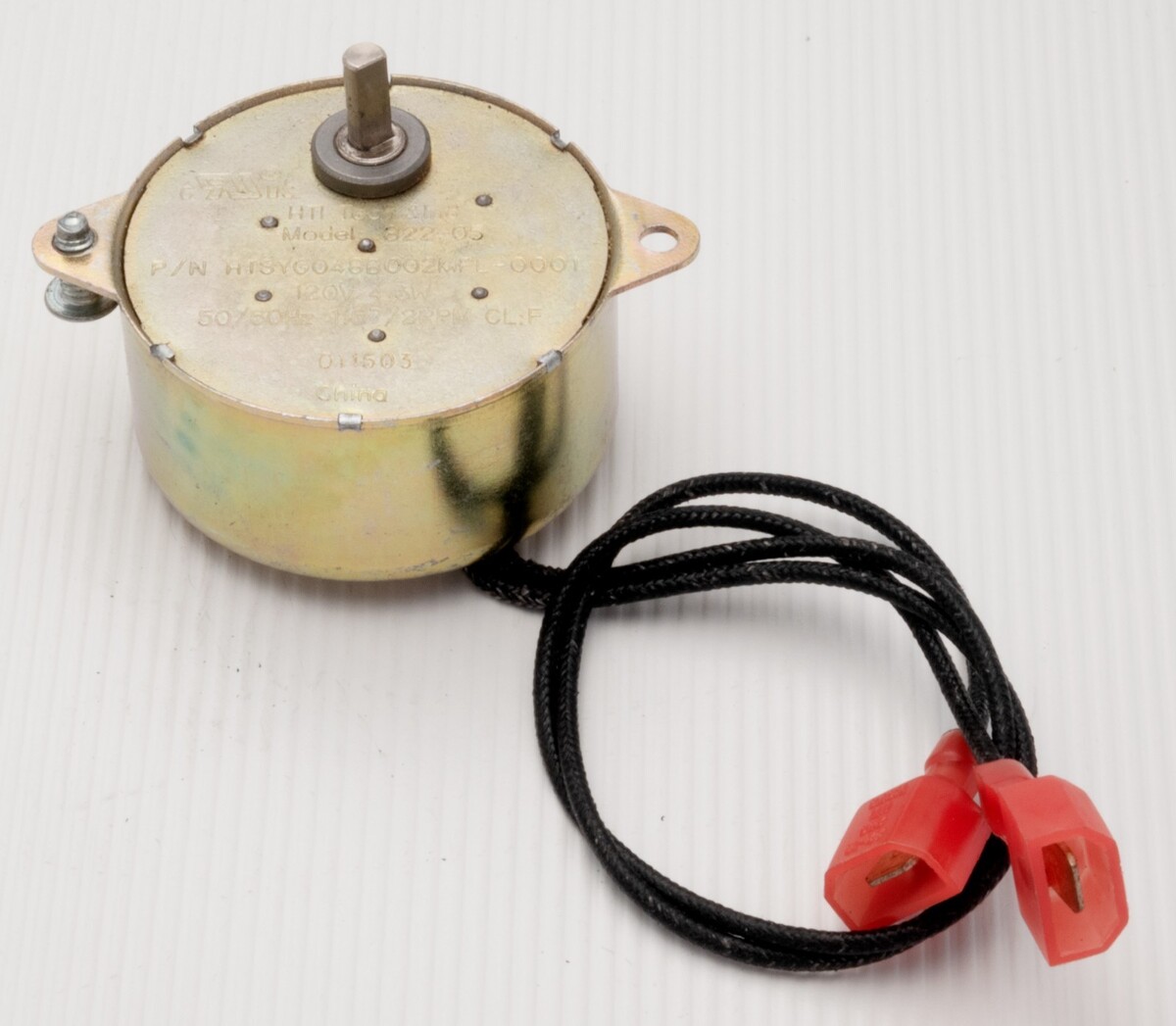

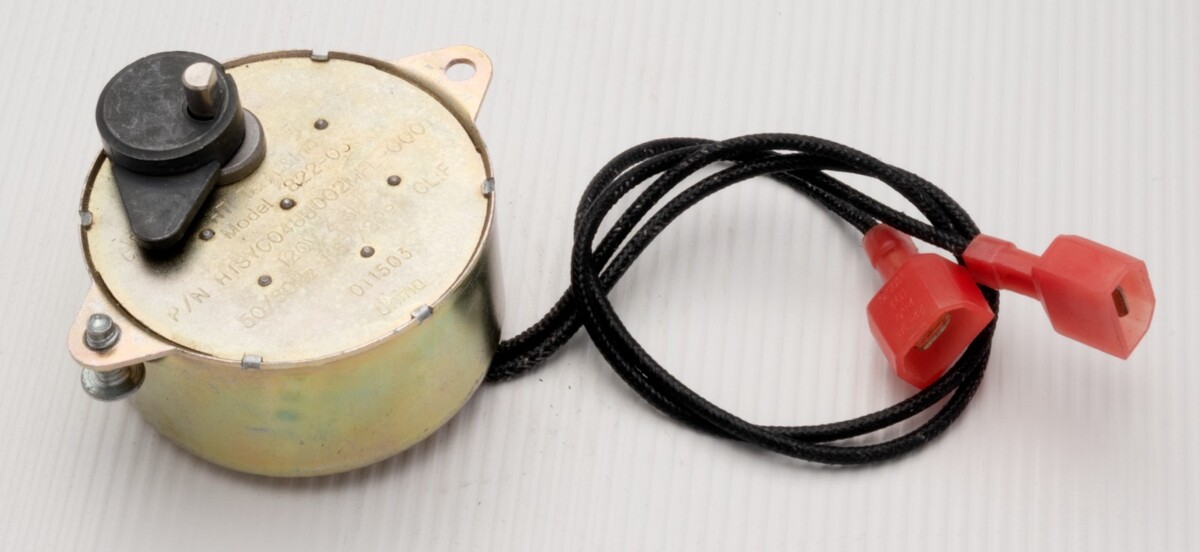

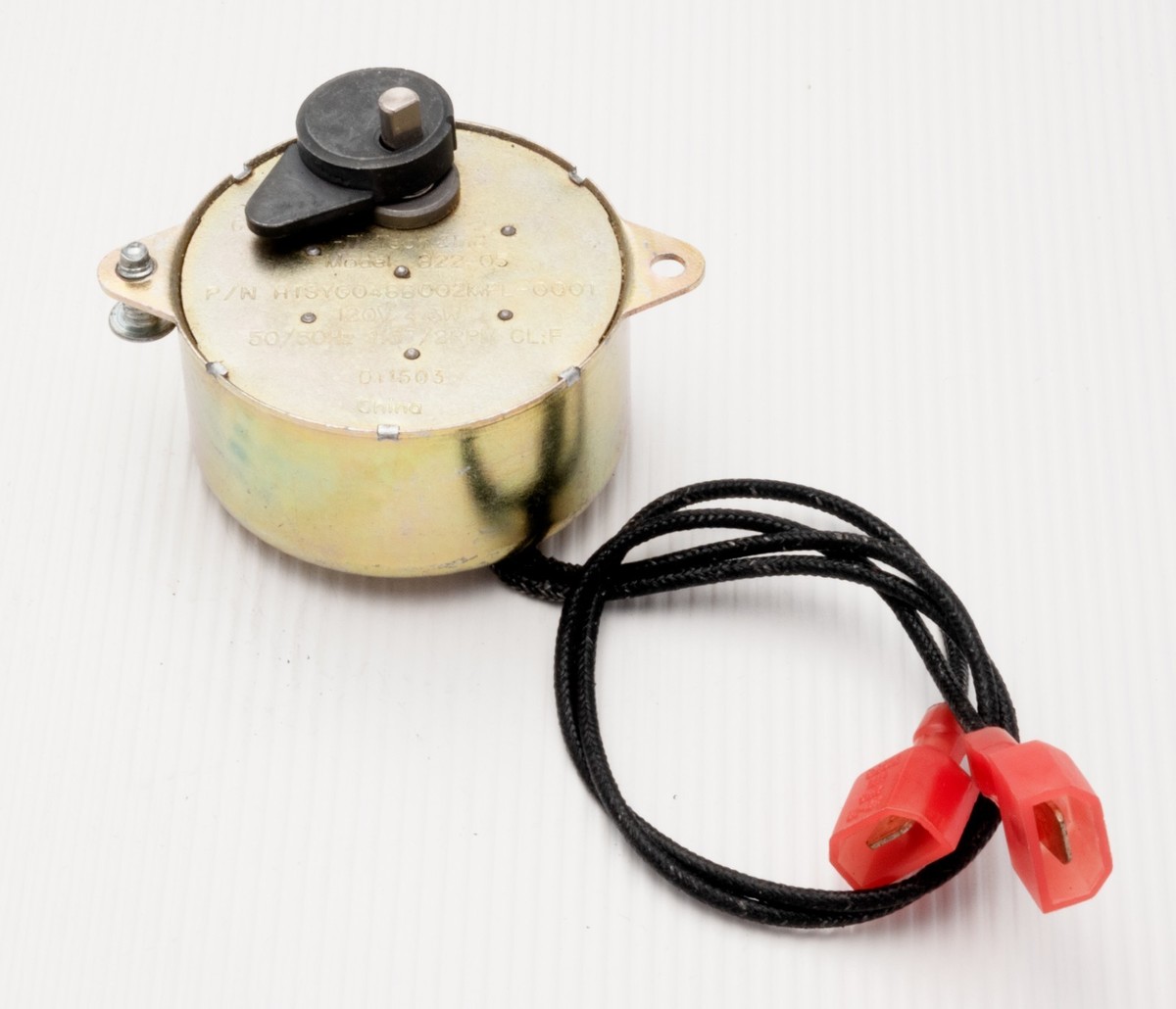

HTI TECHNOLOGY SYNCHRONOUS SUB-FRACTIONAL GEAR MOTOR ELECTRIC 2-WIRE 120V 50/60Hz 2RPM 4.3W 822-05 CW/CCW AND RANDOM UL
Includes:
(One) Motor
(One) Screw
(One) Lever
Condition: Used, tested and works as designed, See Video.
4.3 W / 746 ? 0.00576 HP (or about 1/175th HP)

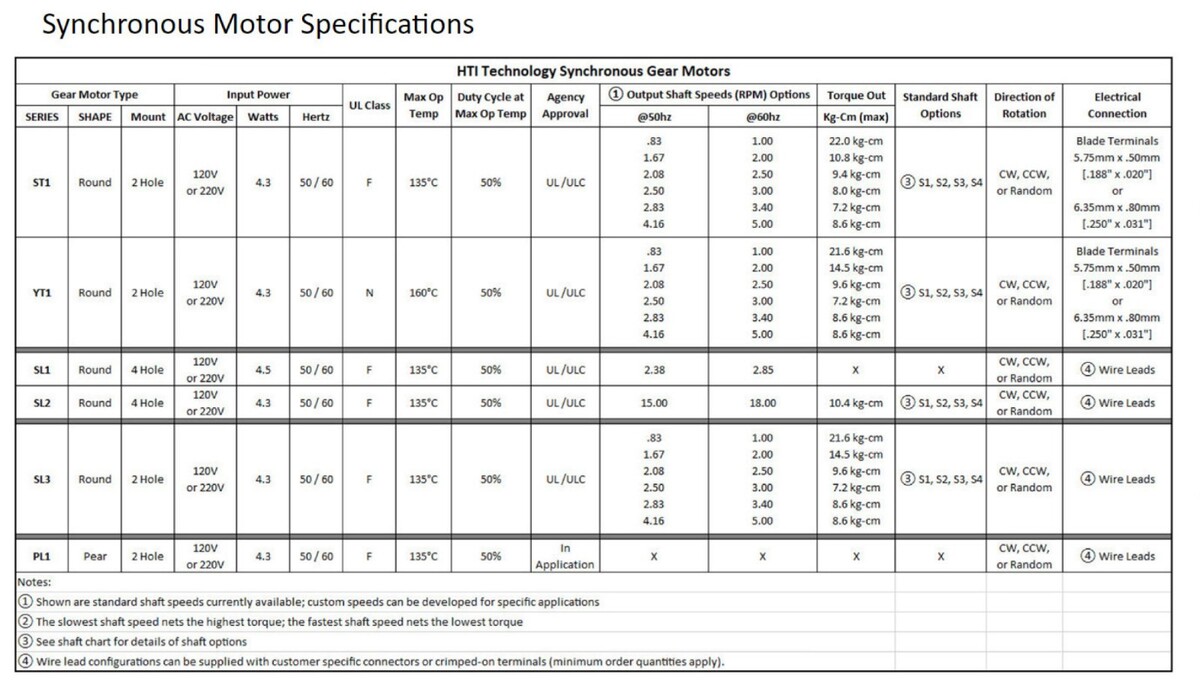

SEE CHART PHOTO (Note: I am not sure what series, but Probably SL3)
Shape: Round
Mount: 2 Hole
AC Voltage: 120V
Watts: 4.3W
Hertz: 50/60
Duty Cycle at Max Temp: 50%
Agency Approval: UL/ULC
Output Shaft Speed @ 50hz: 1.67RPM
Output Shaft Speed @ 60hz: 2.00RPM

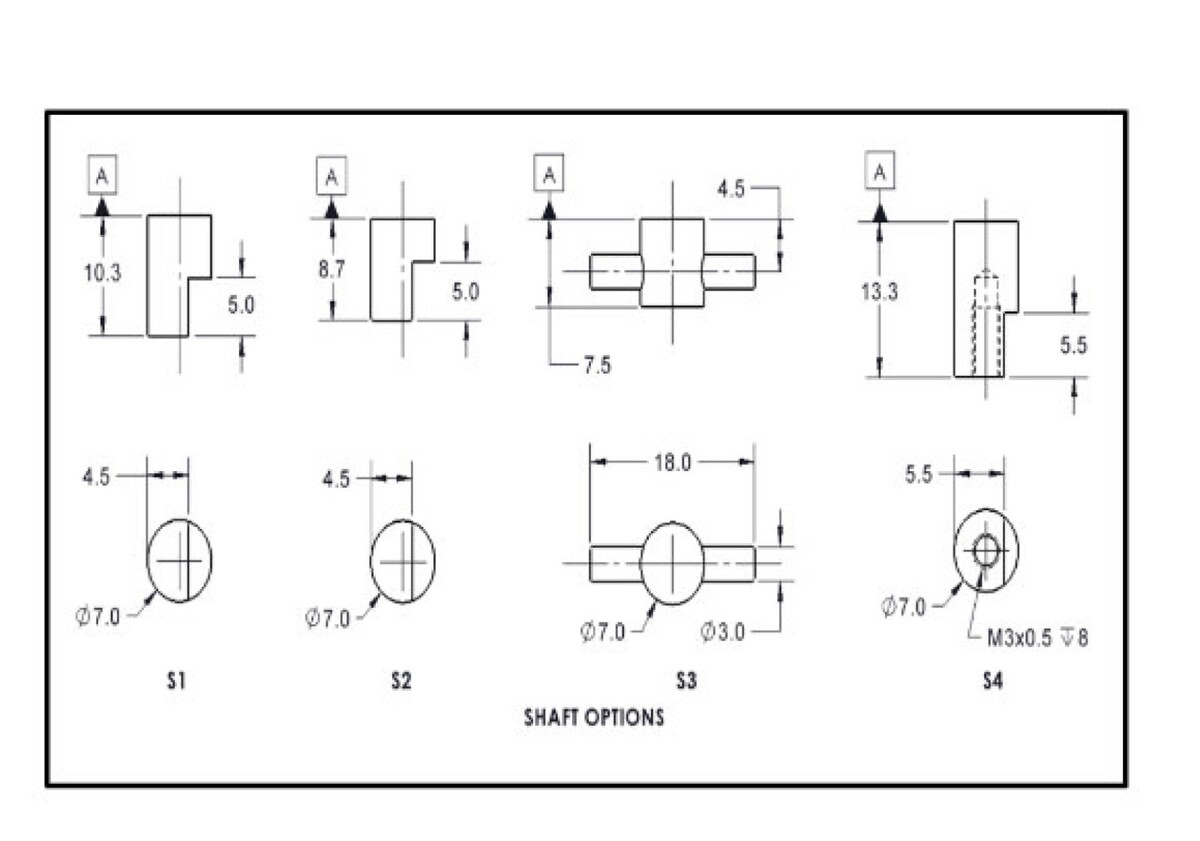

Standard Shaft Options: S1, S2, S3, S4
Direction of Rotation: CW or CCW or Random
Electrical Connection: Wire Leads
Motor Label:
HTI Tech Ind,
Model 822-05,
P/N HTSYG0488002MFL-0001,
120V
4.3W,
50/60Hz 1.67 / 2RPM,
CL:F,
011503
UL/ULC
Size:
Motor: 2? diameter, x 1? High 1/8? Shaft
Motor Connected Wires: 2-Black
Motor Weight: Apx 4.5oz
Motor Shaft Diameter? 1/8"
HTI Synchronous Motors
HTI Technology offers sub-fractional synchronous gear motor in 120V 4.3W This AC motors with copper windings rotate at constant speed that is directly proportional to the frequency of the applied voltage. These characteristics make the motors very reliable and inherently quiet in operation. UL and ULC certification. Synchronous gear motors are found in a wide range of applications, such as appliance, printers, timers, industrial controls, pumps valves, medical equipment, and a variety of other uses.
Made by HTI Technology La Vergne TN.
ANY WEIGHTS OR DIMENSIONS OR TECHNICAL SPECIFICATIONS PROVIDED WHERE TAKEN FROM THE INTERNET AND MAY NOT BE 100% EXACT - FOR CONFIRMATION OR ADDITIONAL MEASUREMENTS OR WEIGHTS PLEASE HI Technology.
