Century DC109, CM34D17NC8A, SCR Rated and 13 similar items

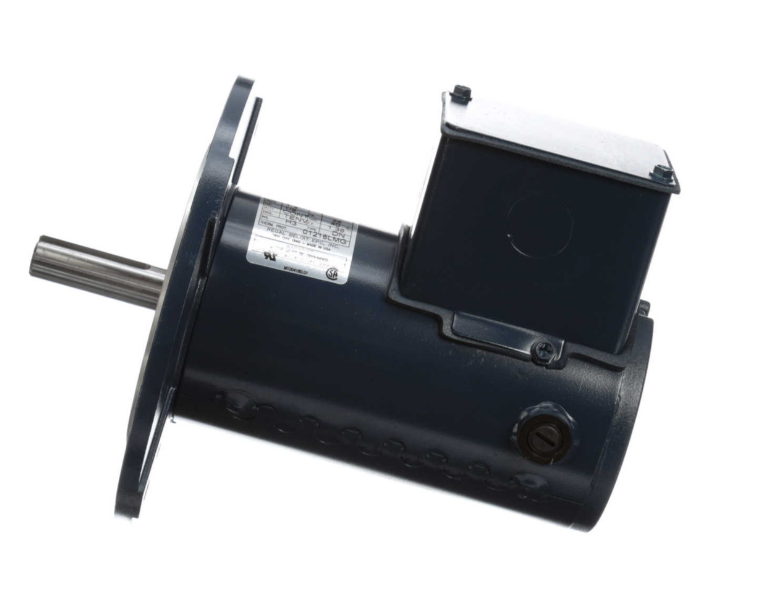

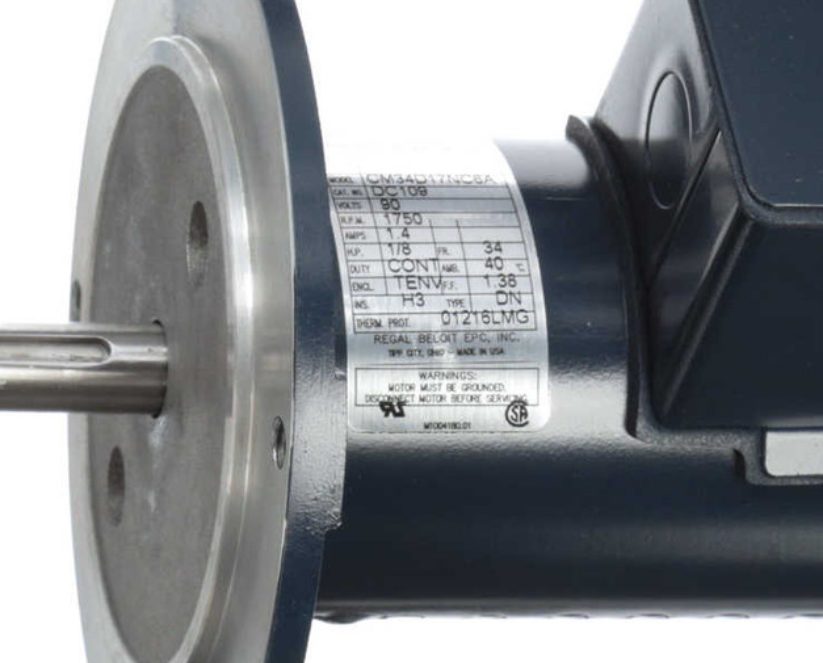

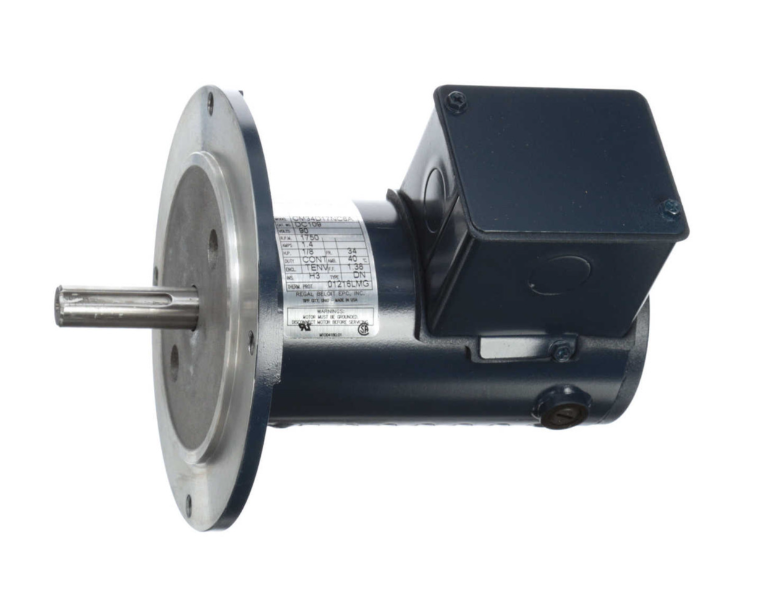

The Century DC109 (CM34D17NC8A) Permanent Magnet SCR-Rated C-Face DC Motor is a compact and durable 1/8 HP motor engineered for applications requiring precise speed control and reliable torque. Operating at 1750 RPM on 90V DC, this motor is designed for use with SCR (Silicon-Controlled Rectifier) drives, making it ideal for conveyors, feeders, packaging equipment, machine tools, and other variable-speed industrial systems. Built with a Totally Enclosed Non-Ventilated (TENV) enclosure, ball bearings, and Class H insulation, it delivers long-lasting performance even in demanding environments. Its 56C frame allows direct C-face mounting to compatible machinery. Key Features 1/8 HP, 1750 RPM DC motor Permanent magnet design for high torque and efficiency SCR rated for variable-speed control Totally Enclosed Non-Ventilated (TENV) for protection against dust and debris Ball bearings for long service life Class H insulation for high heat resistance 56C frame for direct C-face mounting 1.4 full load amps at 90V DC Specifications Part Numbers: DC109, CM34D17NC8A Horsepower: 1/8 HP RPM: 1750 Voltage: 90V DC Full Load Amps: 1.4 A Enclosure: TENV (Totally Enclosed Non-Ventilated) Frame: 56C Frame Insulation: Class H Motor Type: Permanent Magnet, SCR Rated Bearings: Ball Bearings Why Choose This Item Choose the Century DC109 for its precise speed control, durability, and high-efficiency permanent magnet design. Perfect for industrial systems requiring consistent torque at varying speeds, this SCR-rated TENV motor is built to handle demanding applications while maintaining long service life and dependable performance.
